Hose drum is designed for coiling hoses transferring water, coil and gas etc; it can be installed on the ground or on the machine equipment.

Hose drum makes up mainly chamber body, hollow main shaft hose, driving power part of rotating putting point. The rotating putting point is a connection to activity hose and static. Can be divided into two types by structure as spring type and moment motor type. Spring type ls mainly used for short distance gas transferring hose drum; torque motor type mainly for long distance hose drum. rotating contact point has low,  middle and high voltage. the largest voltage allows to more than 200Kg/cm!

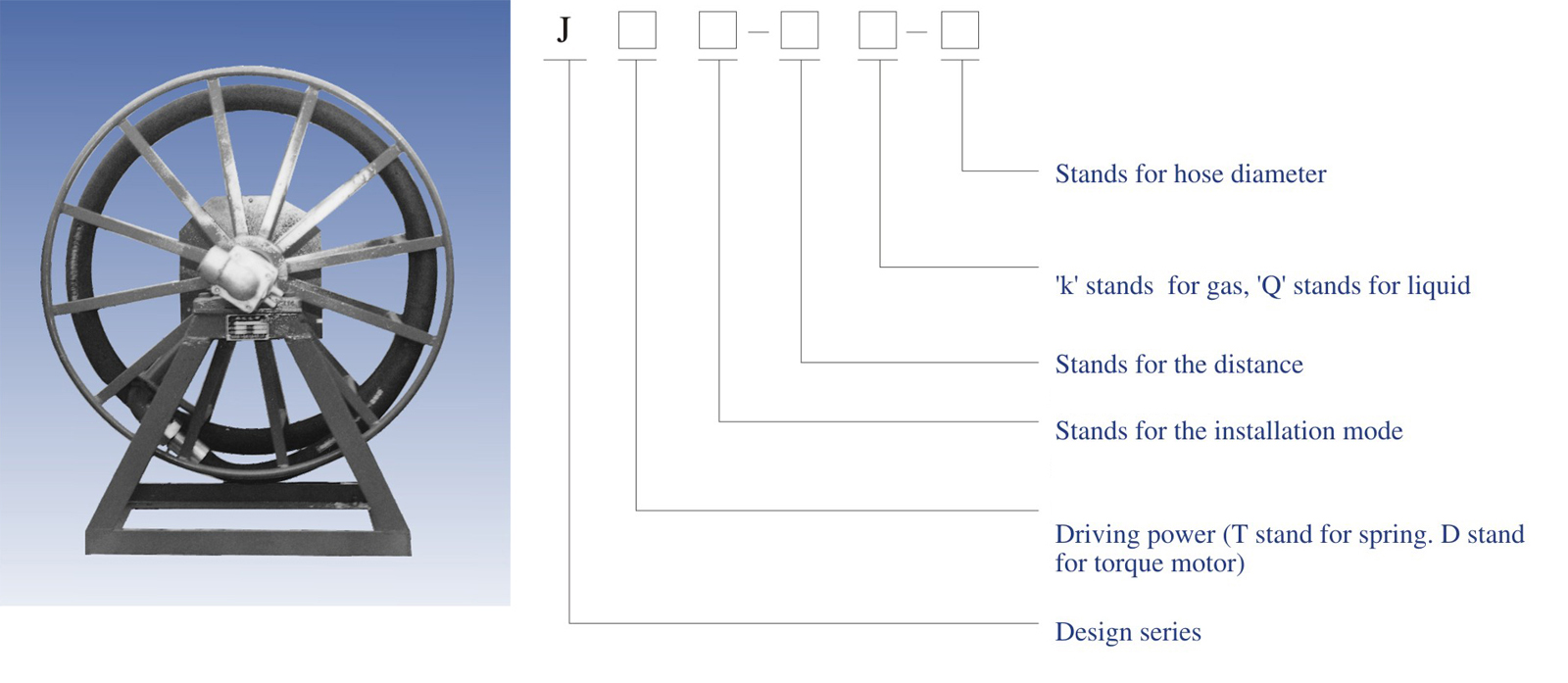

Model designation

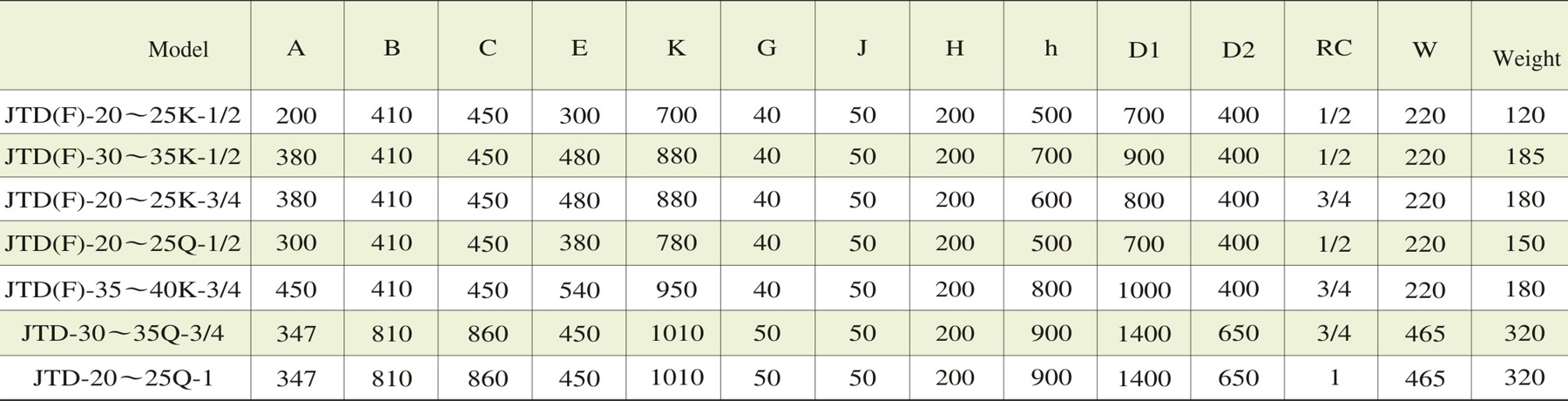

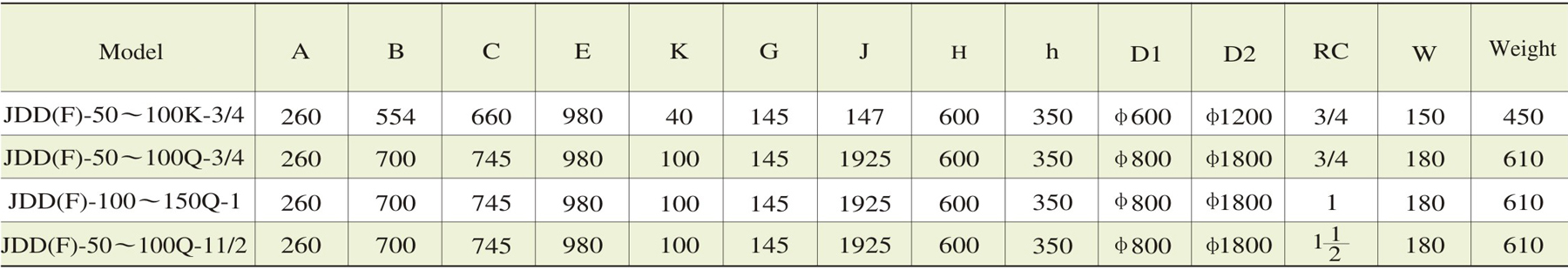

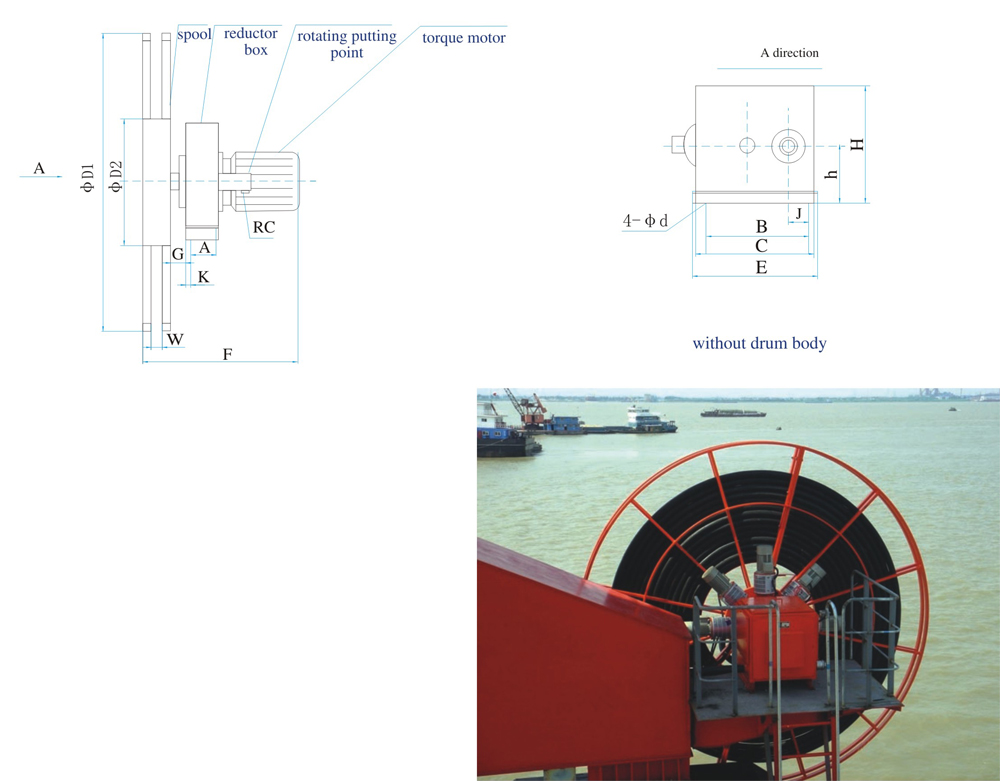

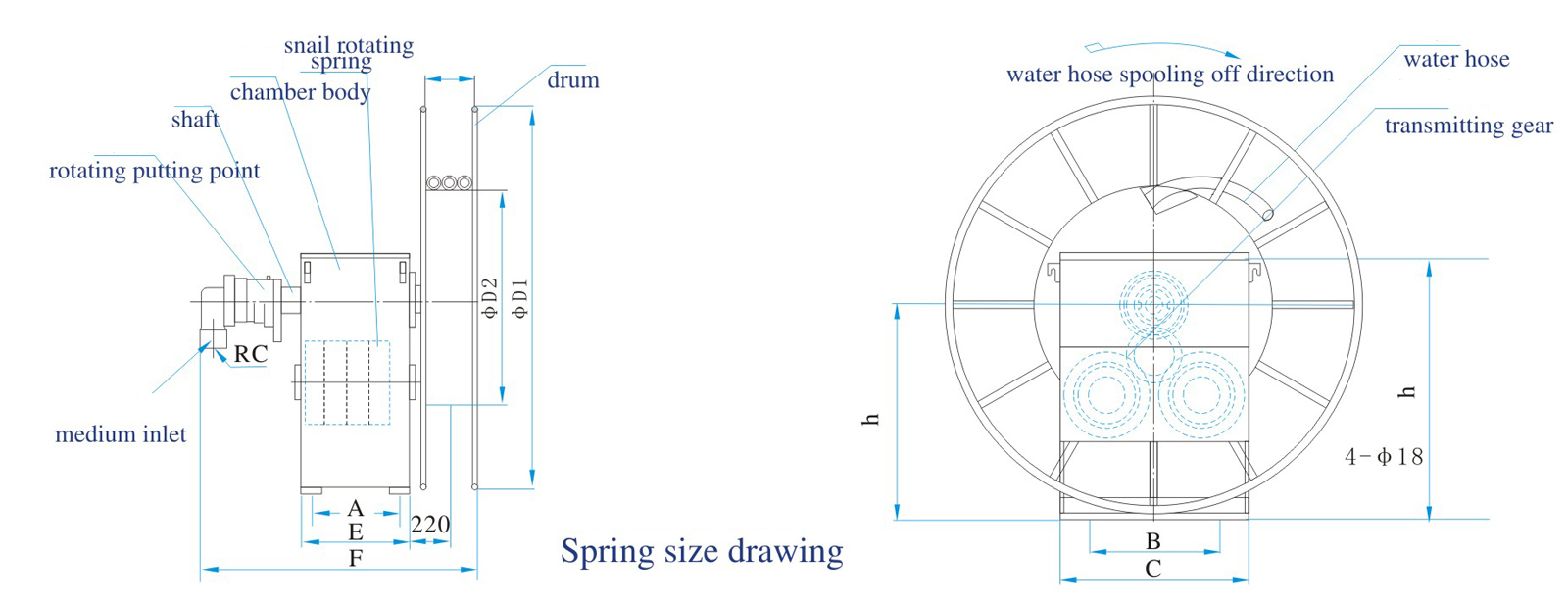

Overall dimension drawing
