The heavy hammer type cable drum is the the counterweight type theory of mechanics draws the cable, of simple structure, safeguard convenient, which widely used in suspended rolling in cable at steel factory of steel car. After user model selection, must offer the specification of the cable, high H of installation of the length and pulley(the height of H is generally to be more than 6 meter or in 6 meter).

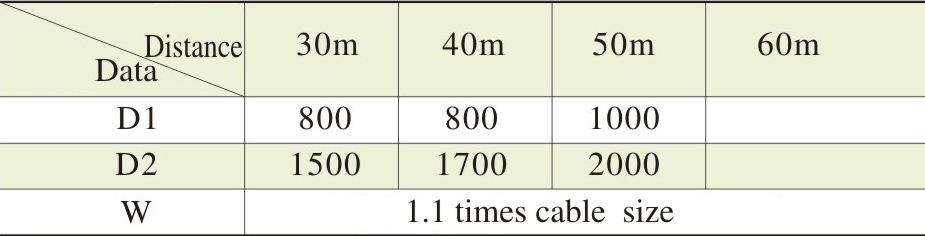

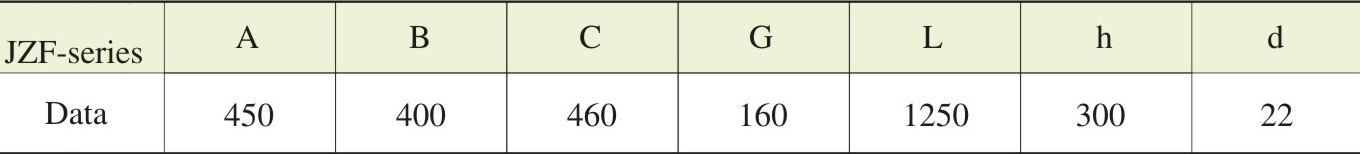

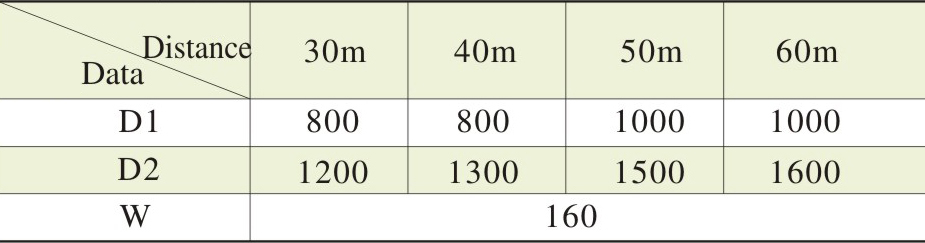

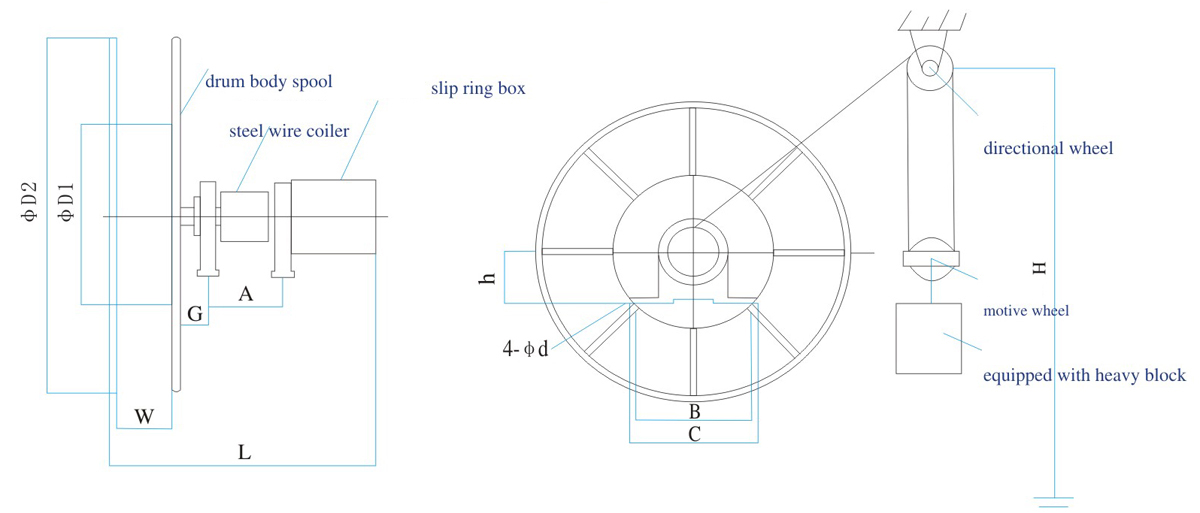

Overall dimension drawing

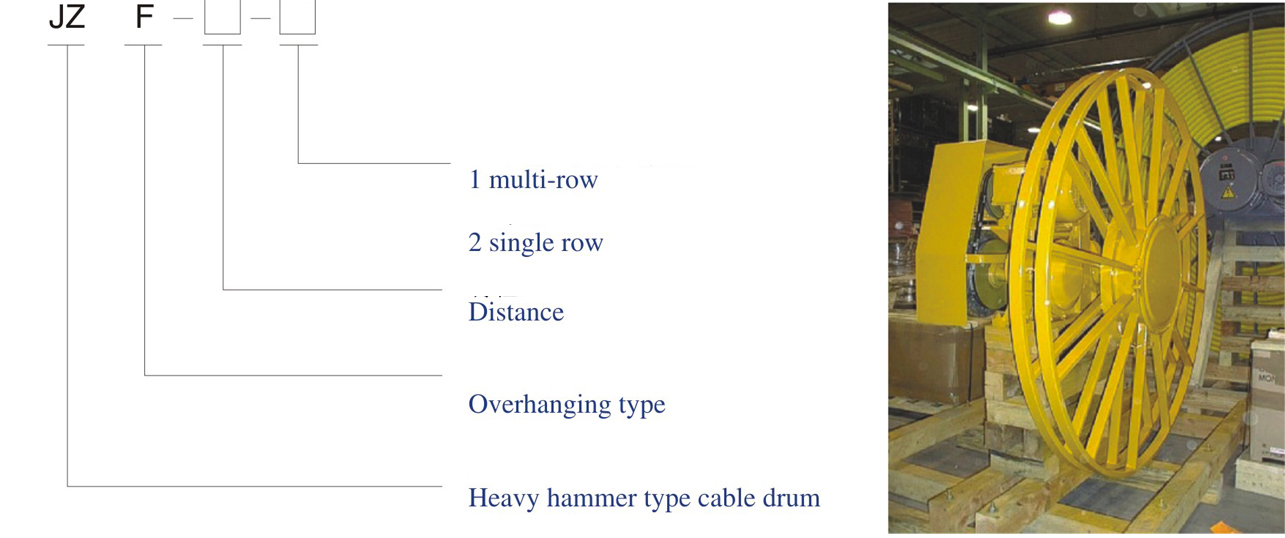

Model designation
